Alderley Edge maintenance | Lyme Plumbing & Heating

Another house in Alderley Edge. I installed the heating and plumbing a good few years ago, and I've looked after it ever since.

Downstairs, the underfloor heating pipe went onto insulation over a large open-plan floor, and the floor was screeded over it. Upstairs, the pipe sits on spreader plates between the joists.

Underfloor heating pipe laid across insulation on a large open-plan floor — Underfloor heating pipe on insulation, over an open-plan ground floor.

Underfloor heating pipe clipped to insulation boards — The pipe fixed to the insulation.

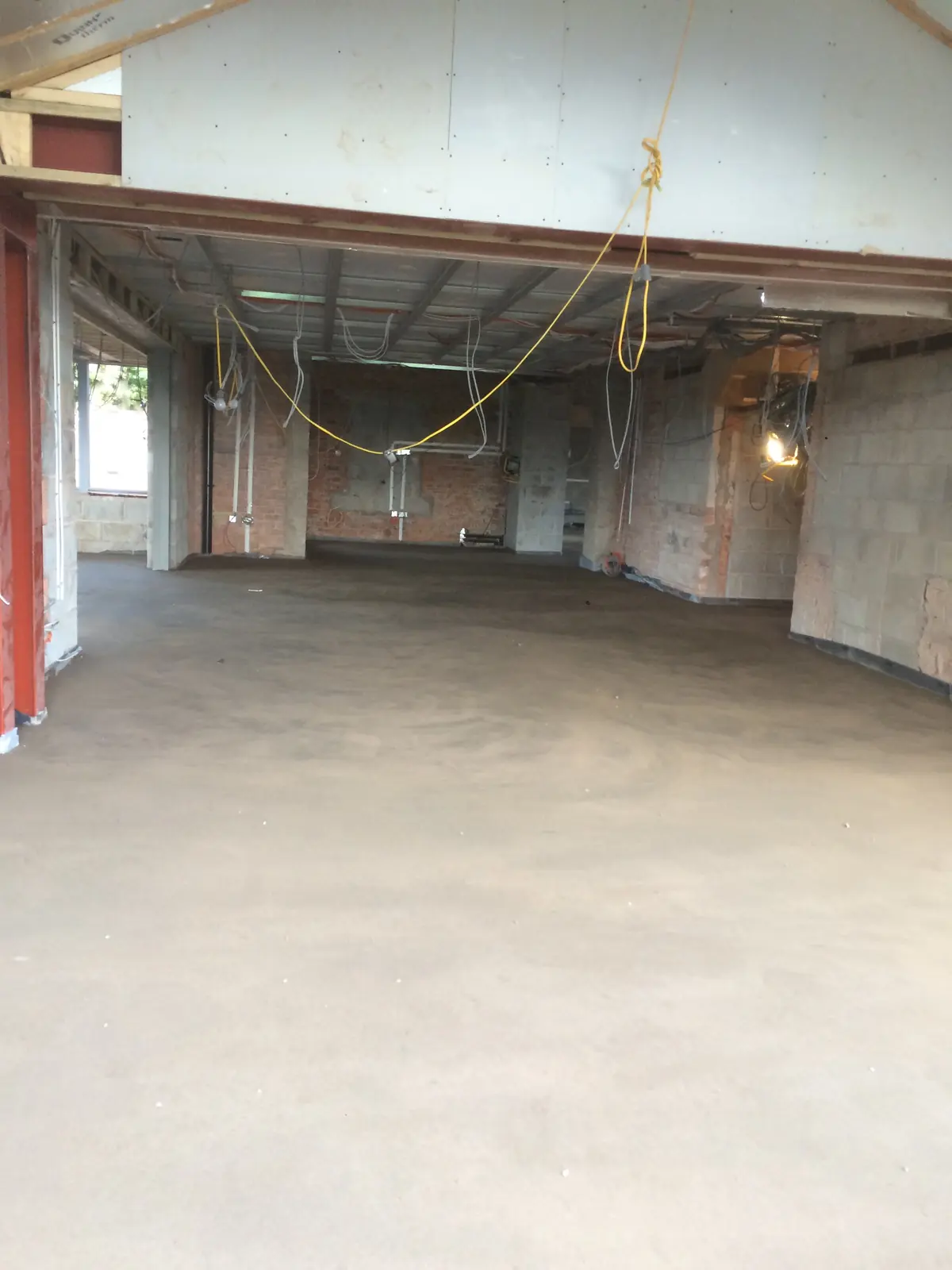

Screeded floor in a large open room before the finishes — The ground floor screeded, before the finishes went down.

Underfloor heating pipe on metal spreader plates between timber joists — Upstairs, the pipe on spreader plates between the joists.

Thermal image of underfloor heating manifold pipes — A thermal check on the manifold pipes, on a later visit.

The cold water is on a twin-pump booster set, sat on a break tank. The first photo is how it went in. The second is the same set, years later, still in its housing.

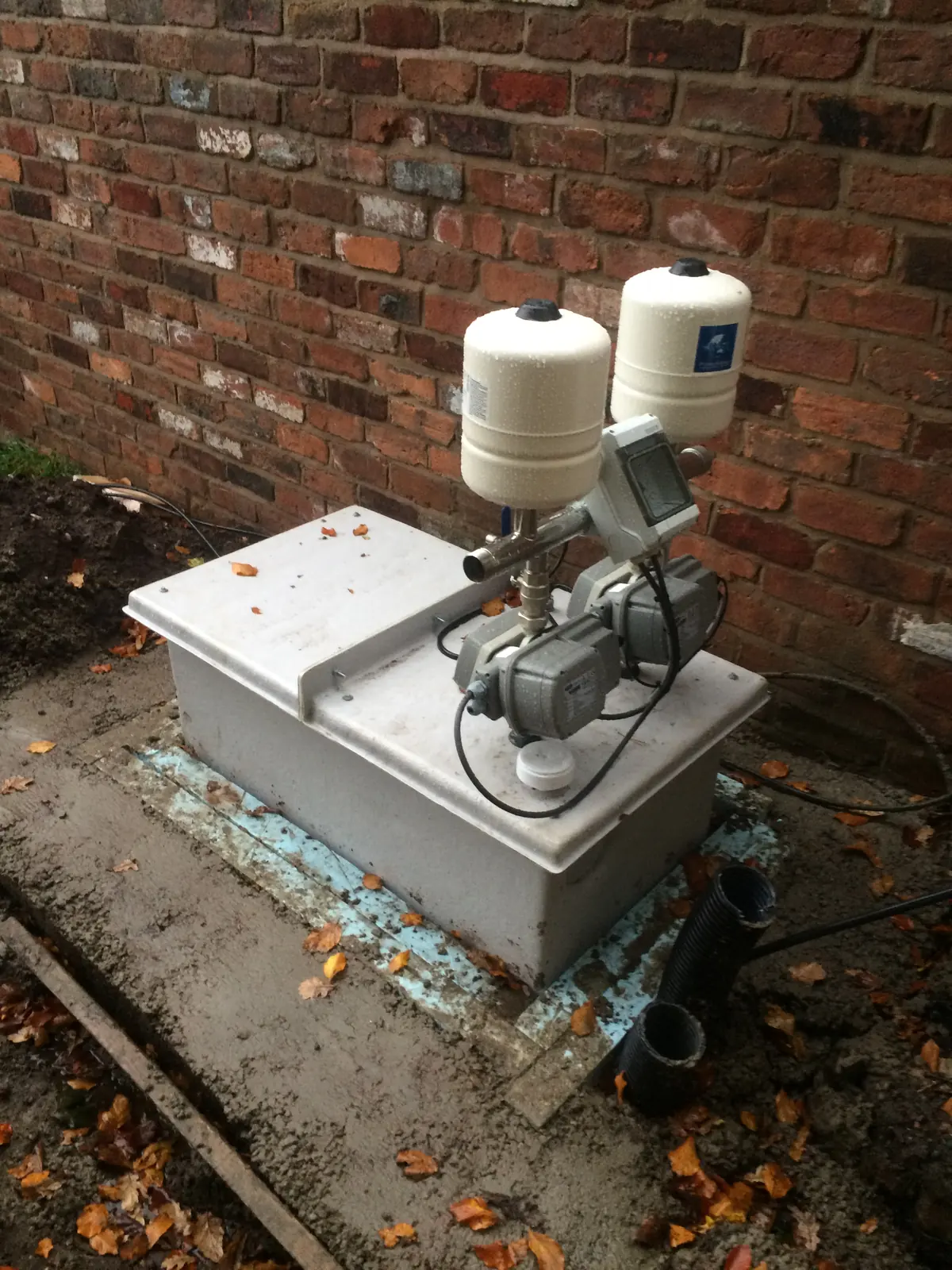

Twin pump booster set with pressure vessels on a break tank — The booster set as it was installed.

The same booster set years later, inside its housing — The same booster set, years later.

There is an air source heat pump on the system. I still go back to service it and to sort faults. These are from visits with the cover off, checking the unit on the water side.

Air source heat pump outdoor unit with the front cover off on a service visit — The outdoor unit with the cover off on a service visit.

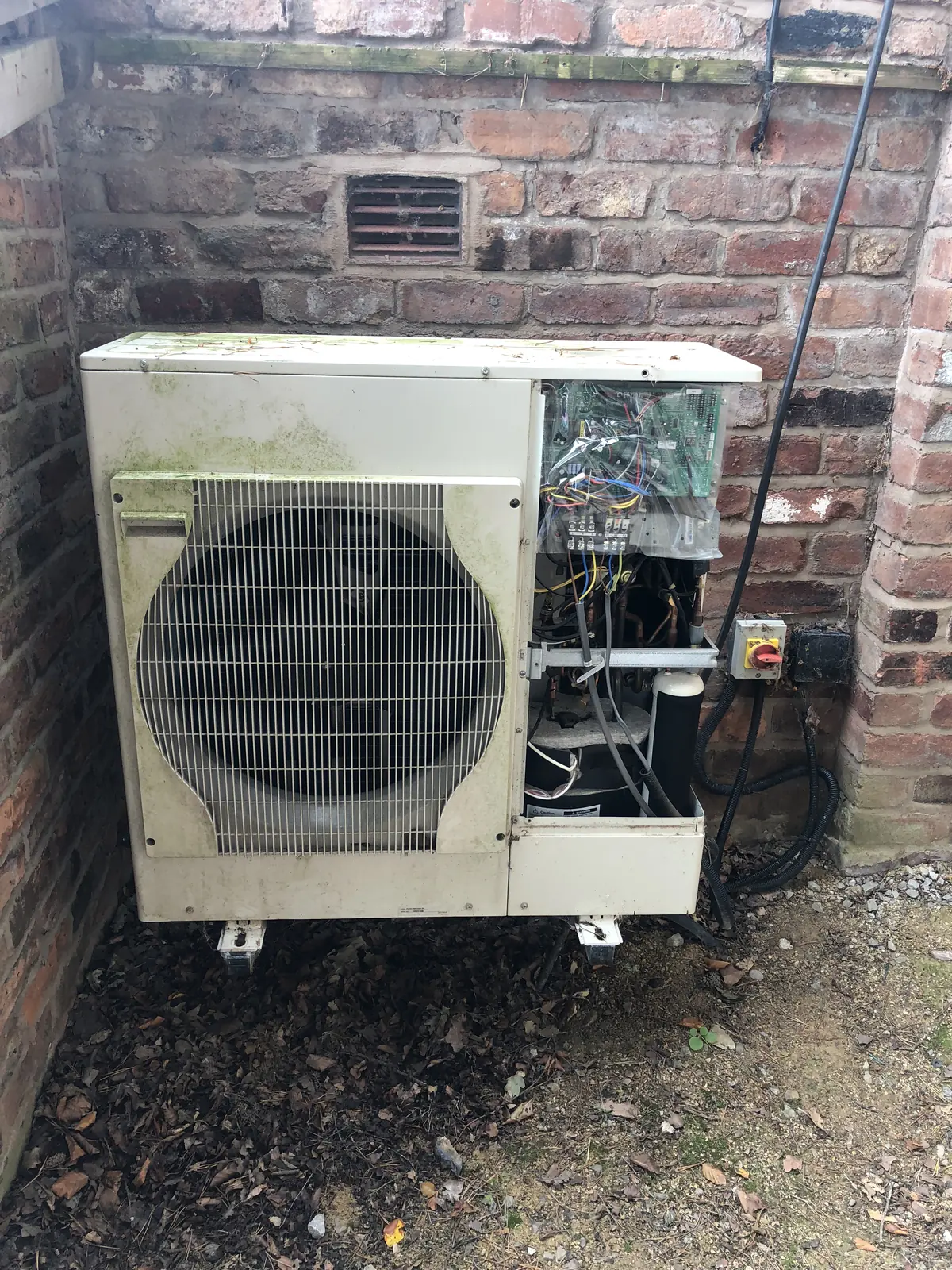

Air source heat pump outdoor unit with the cover off during a service visit — Another visit, cover off, checking the unit.

Alderley Edge: installed, then looked after for years
